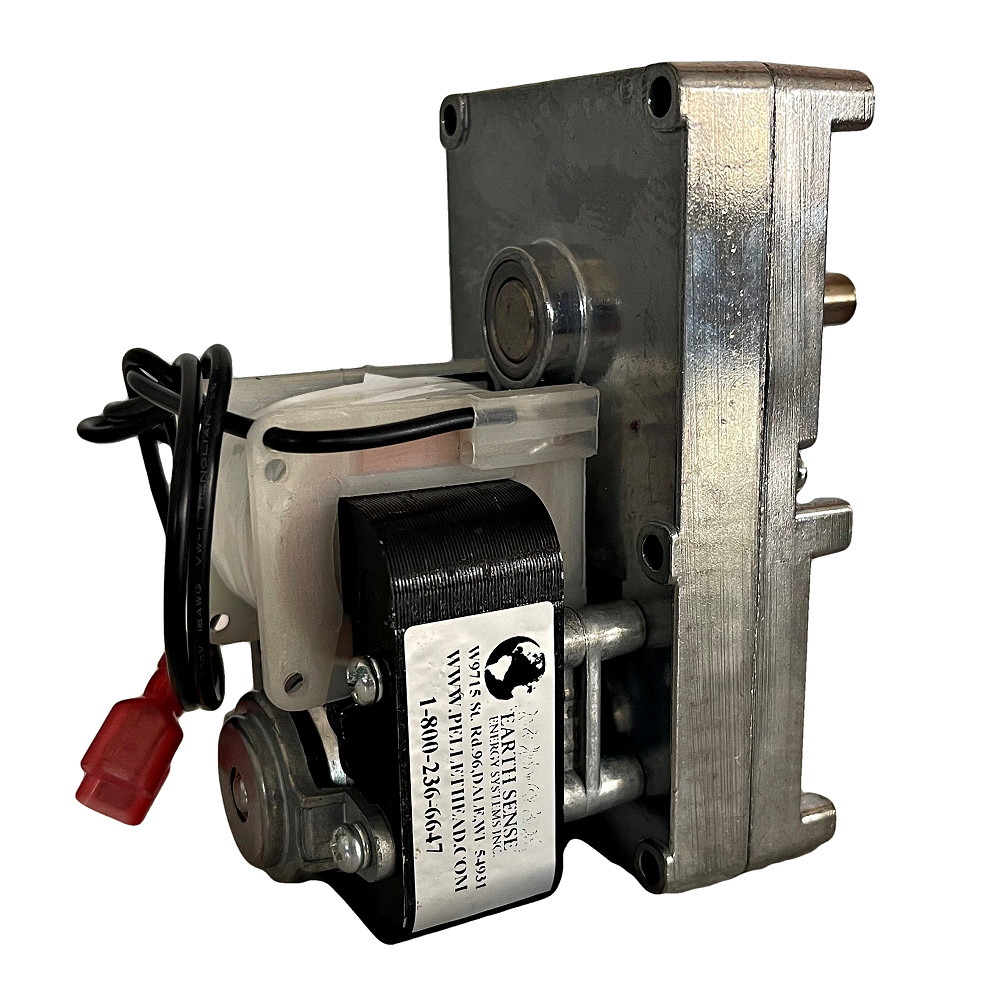

Ashley AP5660, US Stove 5660 Bay Front Auger Motor, 1 RPM CLOCKWISE

USSC 1 RPM AUGER FEED MOTOR

Our Pellethead PH-CW1H replacement auger feed motor is an excellent choice for replacement of the Ashley AP5660L and US Stove Bay Front 5660. Correct replacement for part number 80606. This motor has wire electrical connection leads and a hole drilled in the shaft for securing with a cotter/set pin (not included). A set collar bolt can be used as well if your model has that type of installation. This is a sealed bearing auger motor with no lubrication or oiling required. This 1 RPM Clockwise direction auger feed motor is built to last and backed by a 1 year warranty.

Top Quality Aftermarket Replacement

1 RPM Auger Feed Motor Assembly W/Hole

Clockwise Direction (When facing shaft)

Guaranteed Newest Stock Inventory

1 Year Manufacturer Warranty

Electrical: 120V, 60 HZ, 1.03 Amps. This motor runs cooler than the original and does not have or require the rear plastic cooling fan. This motor has wire leads for electrical connection instead of leads directly on the motor. Connection wires will plug in directly into wire leads; doesn’t matter which wire connects to which lead. We guarantee 100% correct fit and function.

Size: 3/8” Diameter x 1” Length Shaft – Hole drilled in shaft to spec. Please use your existing cotter/set pin to secure. Set collar can be secured to the flat edge of the shaft for models that do not use a cotter/set pin. Gearbox Measures 2-¾” Wide x 4-5/8” High x 1” Width (Width to screw mount hole 1-5/16”) Total width including magnet, armature and gearbox measures 2-1/8”. Wire leads measure 20” in length. We include both male and female spade connectors depending on your stoves configuration.

Model Note

• We have run into a small number of 5660 models that require Clockwise Rotation. If you need to reverse the motor direction, please see Earth Sense on YouTube.

Ashley/King Pellet

• AP5660L

US Stove Company (USSC) Pellet

• Bay Front 5660
